        Liquid level display instrument


        Tank side display

        Product code



        Overview

        Product quotationProduct consulting

        Product introduction

        1)、 Technical characteristics
        1. Intelligent can side display instrument, 2-wire 4-20mADC signal input.
        2. The transmitter is powered by a 4-20mA circuit and does not require an external power supply.
        3. The range and decimal point can be adjusted arbitrarily, and can be displayed according to actual values or percentages.
        4. 2.0 or 2.23 inch wide viewing angle 4-bit LCD display.
        5. Large font, clearer, clear reading from 10 meters away.
        6. Sunproof mirror surface, which does not affect observation data under direct sunlight.
        7. Explosion proof grade Exd II C T6 Gb.
        8. Protection level IP65
        2). Product parameters
        1. Working power supply: 4-20mA circuit power supply
        2. Measurement accuracy: ± 0.2% FS ± 1 word
        3. Power consumption: voltage drop 3.5V/20mA
        4. Humidity range: ≤ 85% RH
        5. Shell material: cast aluminum
        6. Input signal: 2-wire 4-20mADC
        8. Working temperature: -40~60 ℃
        9. Display range: -1999-9999

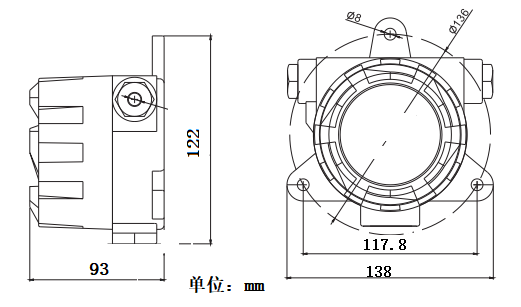

        3). Product dimensions




        ?
